Pvc dispensing machine dispensing teaching, teaching box operation

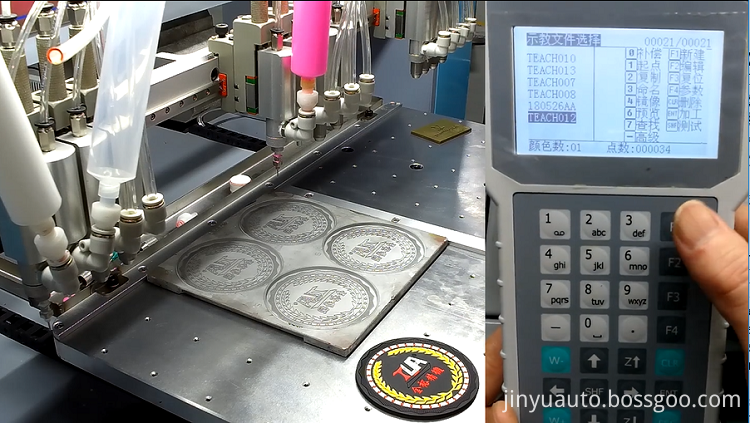

In the [File List] interface, press [F1] to create a new teaching file, enter the [Color List] interface, press [F1] New, press the Arabic numeral to select the main rubber head, and select the clamping cylinder (1) or (2). Then press [ENT] to save.

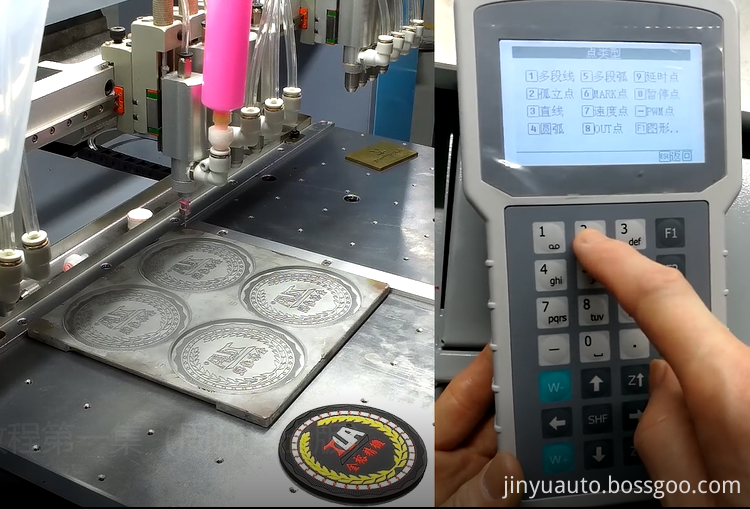

In the [Point List] interface, press [F1] to insert, and then select the type of teaching point (including 1, polyline; 2, isolated point group; 3, line; 4, arc; 5, full circle), move after selection Needle to the position to be selected, press [ENT] to confirm.

After completing one teaching point, press [F1] to insert the teaching point again, follow the previous steps until the whole picture is drawn, press [ESC] to return to the [Color List] interface, and then press [F2] to edit. Then press [ENT] to enter single step mode to check if there is any omission or error. After confirming that there is no problem, press 2 [ESC] to return to the [File List] interface.

Press [F2] to edit in the [File List] interface, press [F2] to edit in the [Color List] interface, press [ENT] to move the needle to the point to be modified, move the point to be modified to the correct position and press (ENT) Save, press [CLR] to delete the extra or wrong graphic, then move the cursor up one space, press [ENT] to confirm whether the needle moves back to the first one of the deleted picture, and then press [F1] to insert. Re-draw, return to the starting point after drawing, press [ENT] single-step test to meet the requirements, repeat the operation, test until the request is reached.

Modify local running speed or glue opening time

In the [File List] interface, press [F2] to edit.

Press [F2] to edit in the [Color List] interface, then move the [up and down arrows" or [ENT] to single-step the points to be modified.

Press the [F4] parameter to set the graphic speed and the glue delay setting (* indicates the default parameter). After the setting is completed, press [ENT] to save.

Well, today learned here, next goodbye
